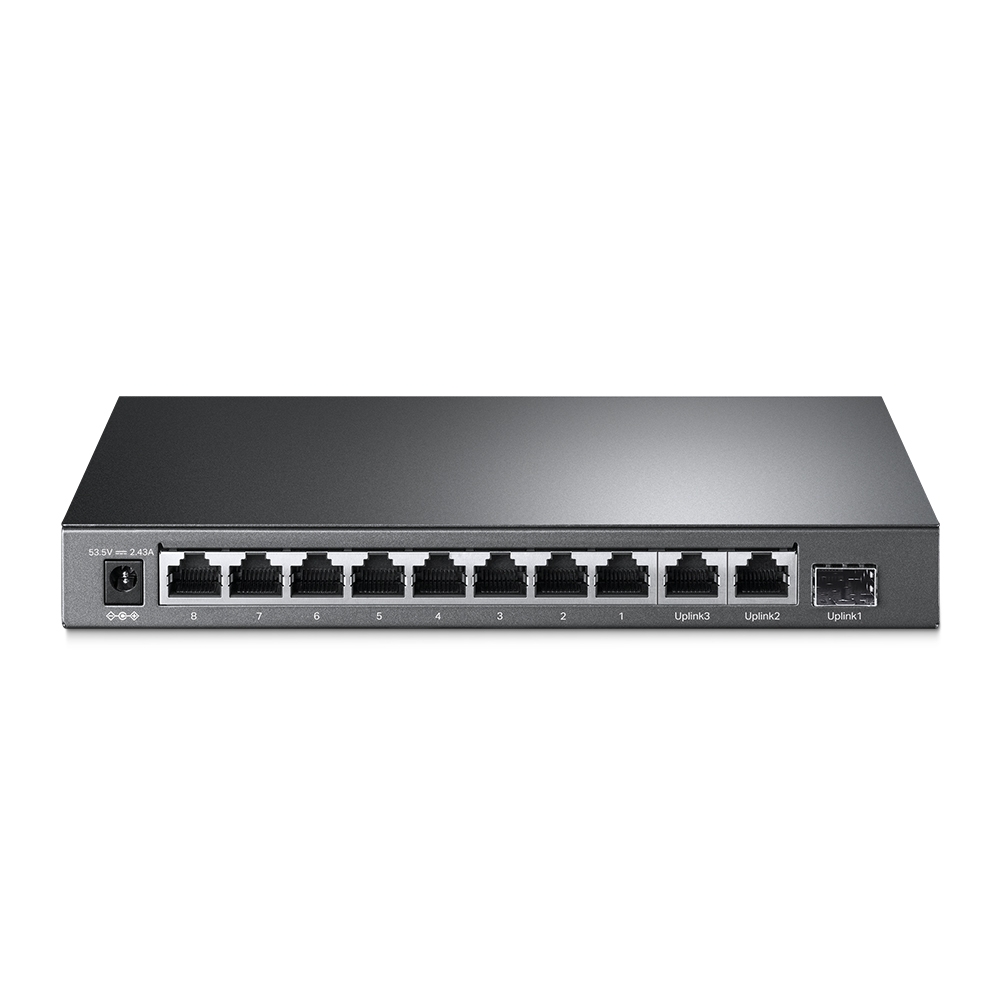

10-Port Gigabit Desktop Switch with 8-Port PoE+
- 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and play with no configuration required
- Fanless design reduces power consumption and works silently in its location
What This Product Does
Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Keep Your Network Smooth and Safe with Abundant Functions
System Self-Healing with PoE Auto Recovery
Durable Metal Casing
Intelligent Power Management
Switches for Surveillance
For general surveillance, TP-Link has designed a variety of PoE Switches to meet the requirements of most IPCs. Many robust features provide value well beyond basic networking needs, creating a versatile and reliable surveillance network to grow your business.
- Long-Range PoE
- Auto Camera Recovery
- Enhanced Network Security
Switches for Business WiFi
For small and medium-sized businesses, a network switch is the fundamental component to build their business network. TP-Link offers an extensive portfolio of network switches with abundant functions and flexible options for every stage of your business growth.
- High-Speed Wired LAN Network
- Manage with Ease
- Abundant Security Strategies
- Lower Yours Costs
- Comprehensive Products
|Interface||• 9× 10/100/1000 Mbps RJ45 Ports• 1× 1000 Mbps Combo SFP/RJ45 Port• AUTO Negotiation• AUTO MDI/MDIX|
|Network Media||• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)|
|Physical Security Lock||Yes|
|External Power Supply||External Power Adapter (Output: 53.5VDC / 2.43A)|
|Packet Forwarding Rate||14.88 Mpps|
|PoE Ports (RJ45)||• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 123 W|
|Mac Address Table||4K|
|Jumbo Frame||16 KB|
|Switching Capacity||20 Gbps|
|Dimensions ( W x D x H )||8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)|
|Max Power Consumption||• 7.93 W (220V / 50Hz with no PD connected)• 141.40 W (220V / 50Hz with 123 W PD connected)|
|Max Heat Dissipation||• 27.04 BTU/h (220V / 50Hz with no PD connected)• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)|
|Advanced Functions||• Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)• Priority Mode Button (Ports 1–2)• Isolation Mode Button (Ports 1–4 / 5-8)• PoE Auto Recovery (Ports 1-8)• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode|
|Certification||FCC, CE, RoHS|
|Package Contents||• TL-SG1210MP• Power Adapter• Installation Guide|
|Environment||• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing|
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
