VIGI C440

VIGI 3MP Outdoor Bullet Network Camera

  • 3MP Ultra-High Definition: The VIGI C300 camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
  • 4/6mm Lens: Whether you need a wide angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C300 comes with two different lens versions to better suit your security needs.
  • Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
  • Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
  • WDR: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
  • 3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.
  • Night Vision: A robust night vision system ensures your camera performs well in low light conditions and records what's happening for future inspection.
  • H.264+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
  • VIGI App: Manage your security from the palm of your hand with the VIGI app.

All The Colors,
All The Time

4MP Full-Color Turret Network Camera

VIGI C440

  •
    High Definition
  •
    Full-Color
  •
    Smart Detection
  •
    Active Defense
  •
    Two-Way Audio
  •
    Onboard Storage*
  •
    PoE / 12V DC

  •
    SmartVid
  •
    Remote Monitoring
  •
    Smart Video Coding
  •
    ONVIF Ensures Compatibility

Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

  • VIGI 4MP Full-Color Camera

  • 2MP IR Camera

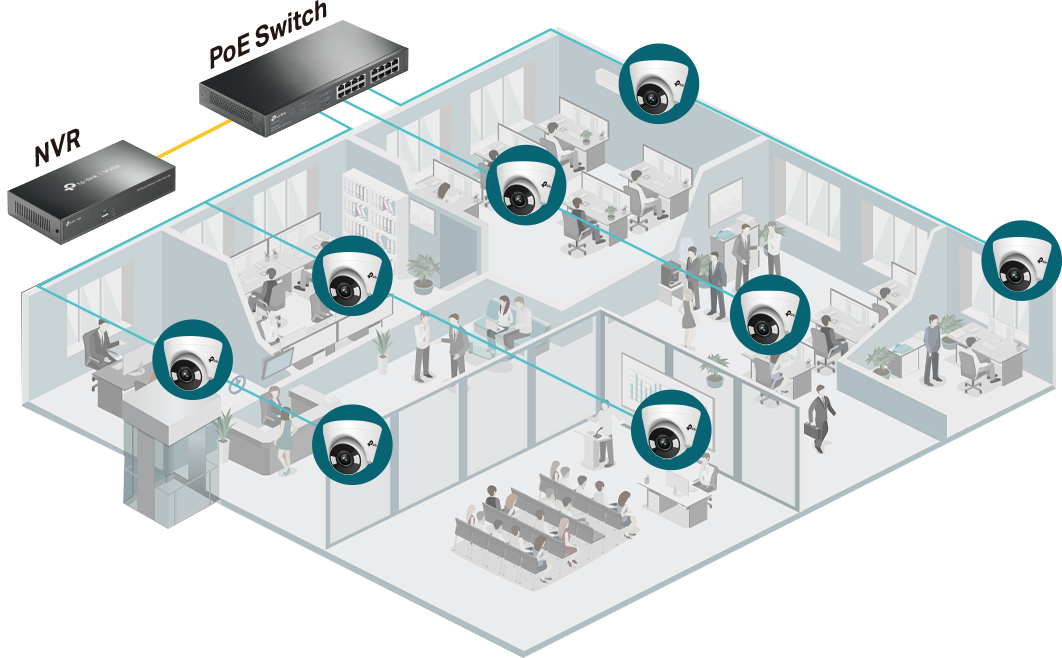

Plug & Play with
One Cable

Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.

NVR

PoE Switch

VIGI C440

Date

Power + Data

We keep an eye
on your business.

Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

  •

    Motion Detection

    Get instant notifications when your camera detects motion.

  •

    Area Intrusion

    Set customized activity zones around key areas for more focused monitoring.

  •

    Line-Crossing

    Set a boundary and receive an alert anytime a person crosses it from either or both directions.

  •

    Camera Tampering

    Receive alerts when someone obstructs the camera.

Active Defense

Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.



Every Event is Under Your Control.

VIGI cameras intelligently detect activities, inform you instantly and respond automatically by smart detection and two-way audio.

Please don’t linger here.



Never miss a detail.

SmartVid-Smart Video Enhancement

Smart IR

Keeps objects from being under-rendered when far away or overexposed when close to camera at night.

Smart IR off

Smart IR on

Wide Dynamic Range

Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

WDR off

WDR on

3D DNR

Removes abnormal pixelation to provide clearer video and eliminate distortion.

3D DNR off

3D DNR on

More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

**Calculations based on laboratory testing using a 3MP VIGI camera, and actual performance may vary according to the amount of activity recorded, resolution and other variables.

89%
Gap

74%
Gap

H.265+

H.264+

H.265

H.264

Video Coding Technology**

Flexible Management and Storage

Take full control over your security via three management methods, VIGI NVR, App, and Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot.

  • Seamless Management

  • Flexible Storage

    HDD
    (Installed in an NVR)

    PC Client
    (VIGI Security Manager Installed)

    NAS

    SD Card*

    FTP

Flexible Installation Gives You More Convenience.

Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.

One Wiring Way

Second Wiring Way

One system. Full security.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

NETWORK
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams
GENERAL
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Bracket
Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Operating Temperature -30–60 °C
Certifications CE, FCC, RCM, BSMI, VCCI, IP67, RoHS
Dimensions( H X W X D ) 164.9 × 87.4 × 83.4 mm
Material Plastic
Weight 283.5g
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
CAMERA
Image Sensor 1/2.7” Progressive Scan CMOS
Lens 4 mm / 6 mm
Aperture 4 mm: F2.4
6 mm: F2.0
Lens Mount M12
Viewing Angle 4 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 114°
6 mm, horizontal FOV: 54°, vertical FOV: 31°, diagonal FOV: 62°
Day/Night Mechanism IR Cut Filter
IR Working Distance 30m
Minimum Illumination Color: 0.1 Lux@F2.0; 0 Lux with IR
Weatherproof Rating IP67
Digital Noise Reduction 3D DNR
WDR DWDR
VIDEO/IMAGE
Video Compression Main stream: H.264+/H.264
Sub-Stream: H.264+/H.264
Frame Rate & Resolutions Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240
Video Streaming Main Stream
Sub-Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate 64 Kbps to 6 Mbps
SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm -
Button -
Video Output -

†Picture for reference only.
